EV Chargers
The VersiCharge AC charger is perfect for various applications including workplaces, retail, parking garages, multiresidential, all public charging, and home charging.
No matter where you need charging, you’ll enjoy many benefits and features, such as an easy-to-use mobile app, smart building integration, flexible communication connections, faster charging, smart load management OCPP and Modbus communication and much more.
Siemens VersiCharge AC chargers can be mounted to a wall or on a pedestal. The various accessories help you easily integrate it into any parking location.

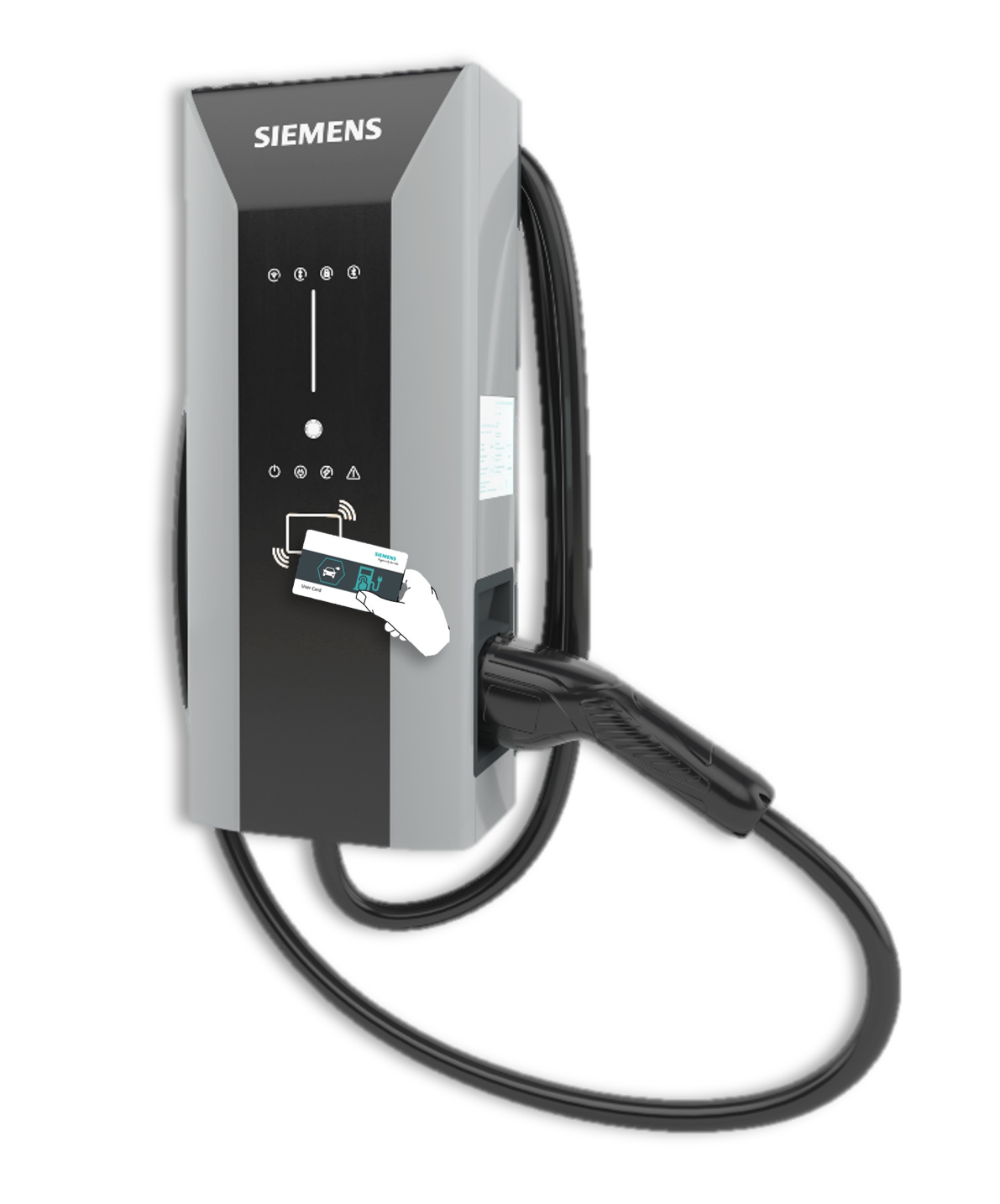

IEC socket version
Smart building integration
• Monitoring and control through Siemens Desigo and third-party systems
• Modbus TCP and RTU communication
• Smart load management and monitoring
Flexibility
• Modular and extend-able site configurations
• Various communication possibilities
• Wall or pole mounted
R
obust and reliable
• Indoor and outdoor capable (IP56)
• Industry-leading safety features
State-of-the-art and Future-proof
• Tested EV interoperability
• Remote upgrade-ability
• Integrated MID metering
I
ntuitive design
• Smart interface and easy usability
• Quick setup using the mobile app for iPhone and Android
• Integrated upstream electrical protection
Integrity
• Cost-effective
• 3rd generation Versicharge AC Wallbox
• Quality made by Siemens

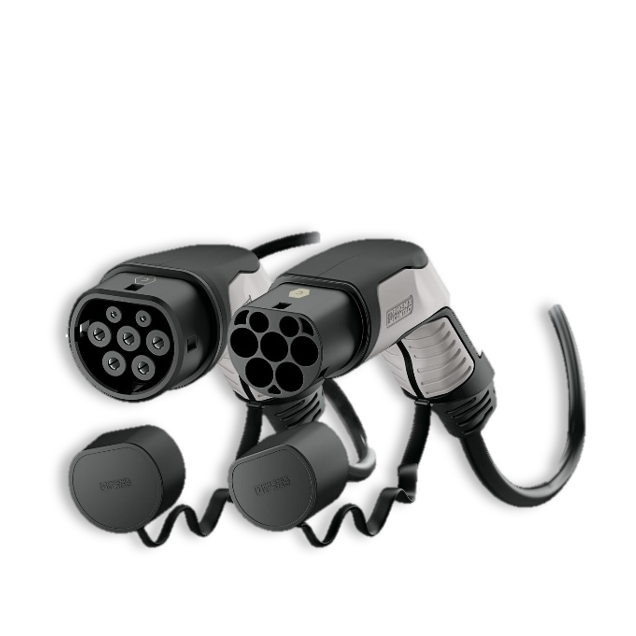

Use with Phoenix Contact Charging cable
Cable: Type2 to Type1
● Rated Volt.: 250Vac
● Rated Amp.: 32A
● Protection Level: IP54
● Length: 5m or 7m
Cable: Type2 to Type2
● Rated Volt.: 250Vac
● Rated Amp.: 32A
● Protection Level: IP54
● Length: 5m or 7m

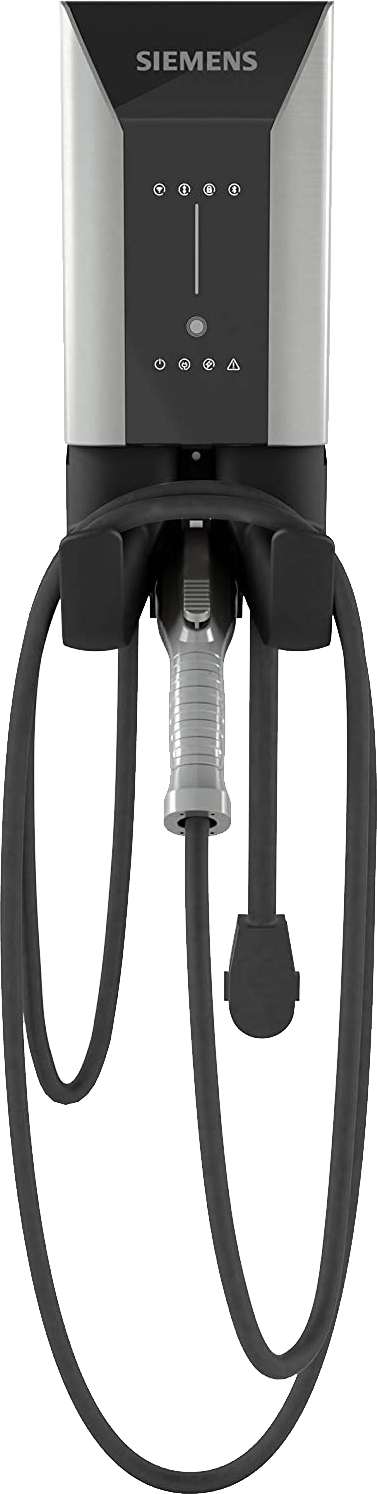

UL residencial version
● The new third generation VersiCharge AC charger is continuing this tradition with numerous groundbreaking enhancements, supports up to 11.5 kW of AC (alternating current) charging power.
● Comes with an easy-to-use mobile application and can charge any standard EV with just a tap of a button from your phone.
● Network connection works with ethernet or wifi. And can be controlled with ModBus or OCPP.
● Protection level is IP56, IK10
● Self protecting system has been implanted to protect user safety
● The separation design of back-plate and main part of device enhance the efficiancy of future repairing or replacing
Contact us for installation
.png)
.png)
.png)
Tel. | 03-3014411
(Available during working hours)
.png "肯鑫電機-西門子充電樁小知識-燈號說明")
.png "肯鑫電機-西門子充電樁小知識-wifi說明")
Related Downloads
UL residencial version
Specification / User manul / APP tutorial
IEC socket version
others
Malfunction light indicator sheet

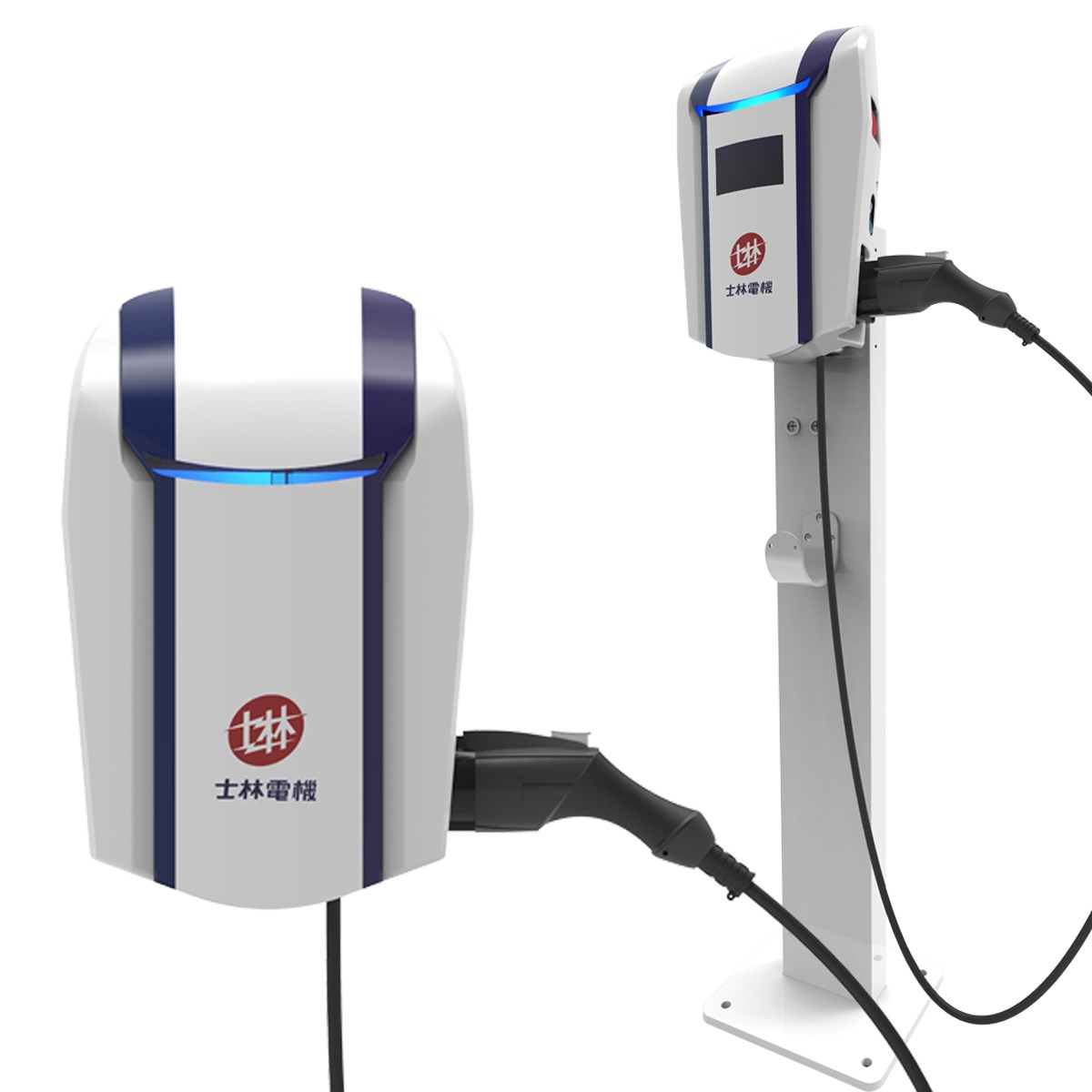

AC Charger 7kW
Features:
►Brand new technological design
►Wall or pole mounted
►LCD status display (optional)
►RFID function
►Communication protocol: OCPP 1.6 JSON
►AC Charging interface: "J1772"or"Type2"
►Specification : L2-Series
DC Charger 30kW
Features:
►Optional DC charging interface (pick 2 out of 3): CCS1、CCS2、CHAdeMO
►10" status display
►RFID function
►Communication protocol: OCPP 1.6 JSON
►Support OTA update
►Patented Tech: Automatic non-Uniform Current Sharing
DC Charger 120~180kW
Features:
►Optional DC charging interface: CCS1、CCS2
►10" status display
►RFID function
►Communication protocol: OCPP 1.6 JSON
►Support OTA update
►Patented Tech: Automatic non-Uniform Current Sharin
►Specification: L3-S120PSSM / L3-S180PSSM
『I DO Motel』/ Private room parking space
Location: Taoyuan / Qty: 10 / Model: UL version (40A) / Brand: Siemens
.jpg "西門子充電樁-AC慢充-美規9.6kW")
.jpg "西門子充電樁-AC慢充-美規9.6kW")
B&B 『Chez Mina 瑞穗』 / Customer parking space
Location: Hualian / Qty: 1 / Model: UL version (48A) / Brand: Siemens
『峰裕曦月』New apartment reception center / Public parking space
Location: Taoyuan / Qty: 1 / Model: UL version (48A) / Brand: Siemens
Residencial use / Personal parking space
Location: Changhua / Qty: 1 / Model: IEC socket version / Brand: Siemens
Residencial use / Mechanical parking space
Location: Hsinchu / Qty: 3 / Model: IEC socket version / Brand: Siemens
Company use『豐溢綠能』/ Outdoor parking space
Location: Changhua / Qty: 1 / Model: UL version (48A) / Brand: Siemens
.jpg "西門子充電樁-AC慢充-美規11kW")
.jpeg "西門子充電樁-AC慢充-美規11kW")
.jpeg "西門子充電樁-AC慢充-美規11kW")
Hotel『新大竹北商旅』/ Outdoor parking space
Location: North Hsinchu / Qty: 1 / Model: UL version (48A) / Brand: Siemens
『New Taipei City Council』/ B1 Parking space
Location: Banqiao / Qty: 2 / Model: UL version (32A) / Brand: Shihlin Electric
『湛高峰』Apartment / B1 Public parking space
Location: North Hsinchu / Qty: 3 / Model: IEC socket version (32A) / use with 7m charging cable (J1772: 3；Type2: 3) / Brand: Siemens&Phoenix Contact
Residencial use / Personal parking space
Location: Taichung / Qty: 1 / Model: UL version (48A) / Brand: Siemens
