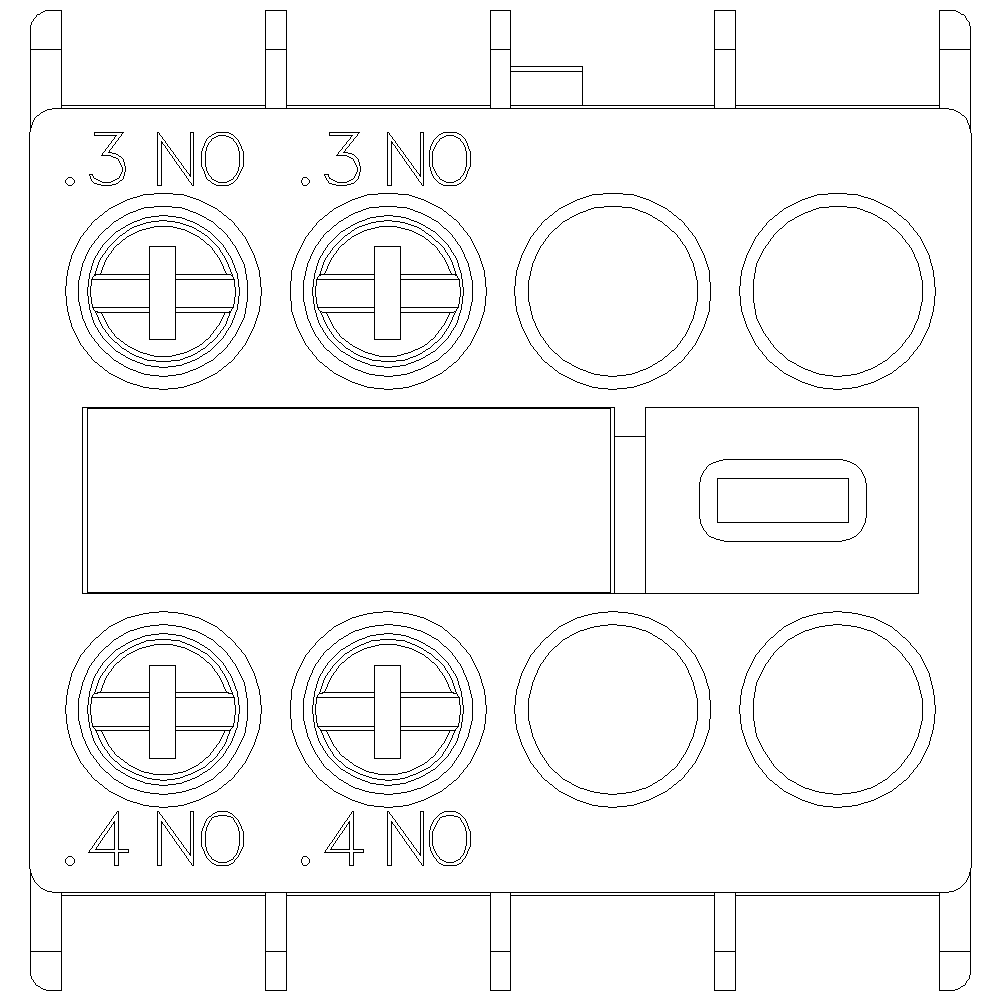

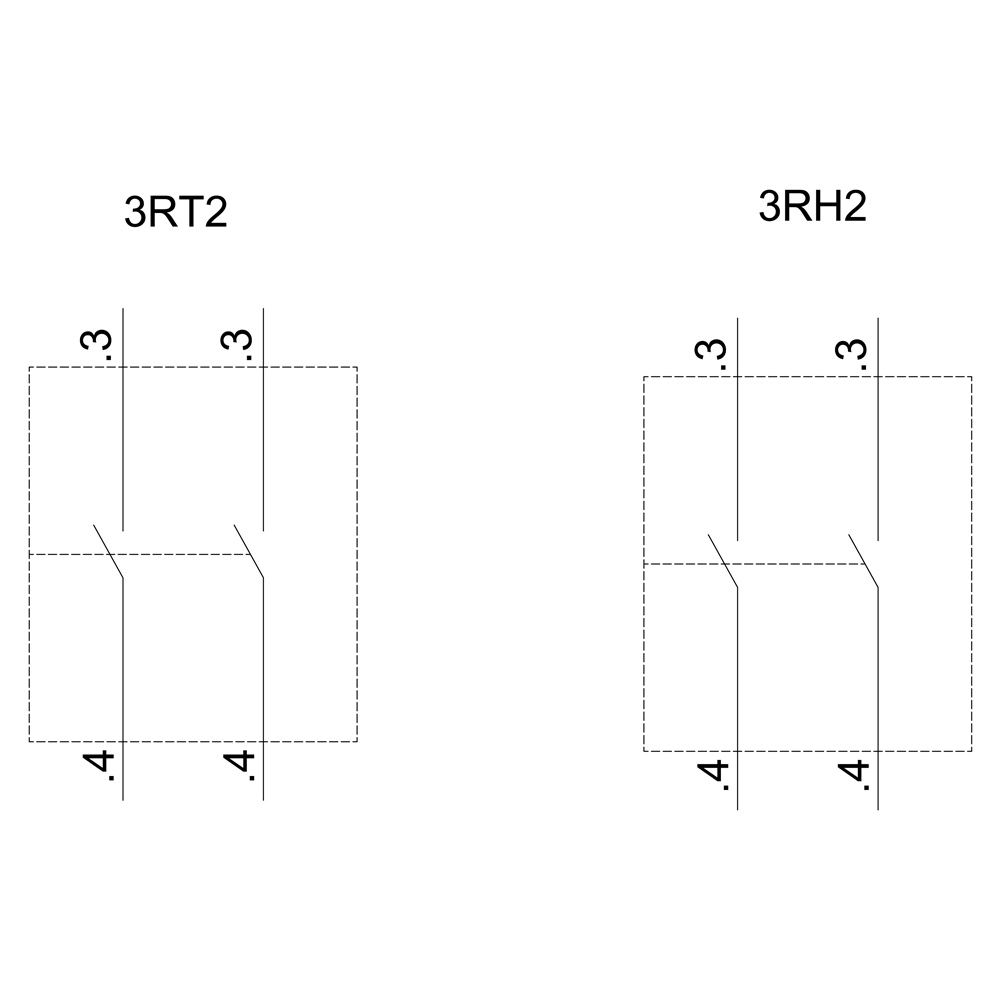

3RH2911-1HA20§Auxiliary switch on the front, 2 NO Current path 1 NO, 1 NO for 3RH and 3RT screw terminal .3/.4, .3/.4
Number of contacts: 2
安裝類型: Snap On Mount
接點設定: 2NO
Series: 3RH
異物防護等級: IP20
搭配使用: 3RH and 3RT Series Contactor Relay and Power Contactor
終端類型: Screw
Mechanical life: 10000000 cycles

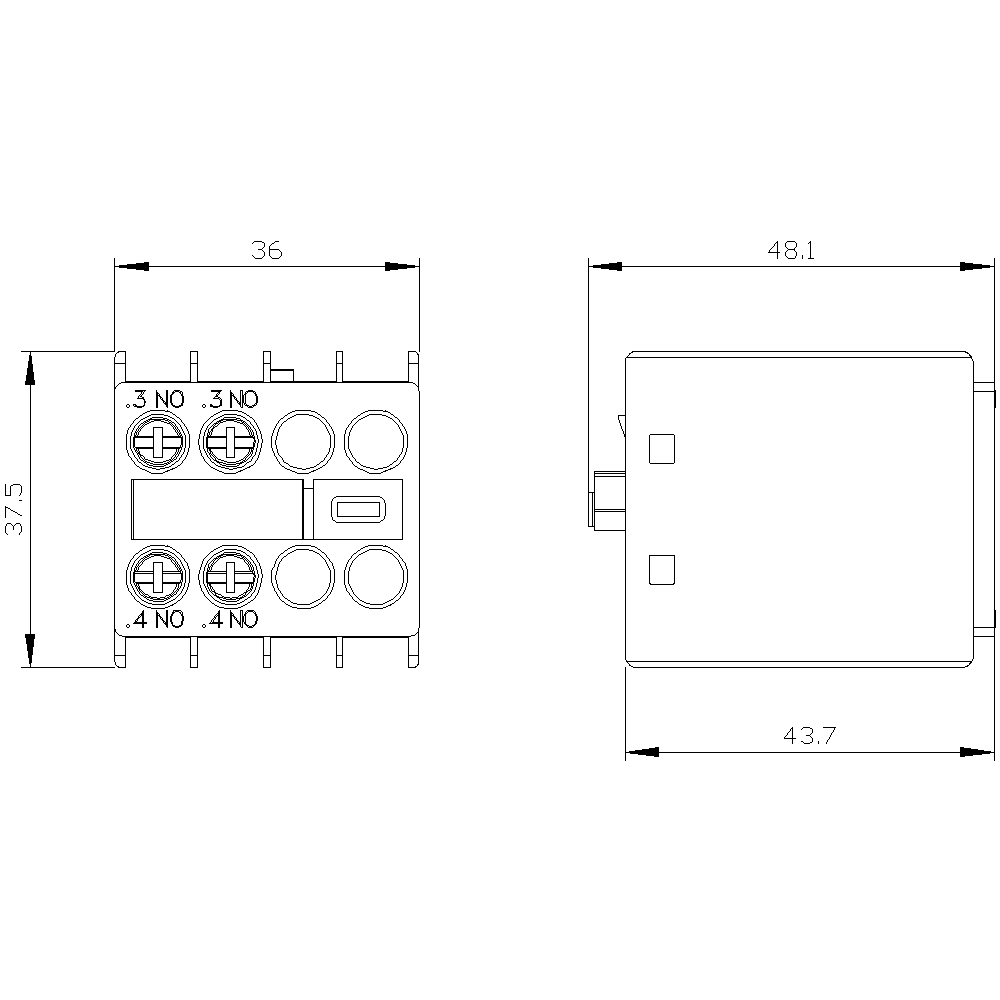

尺寸: 36 x 48.1 x 37.5 mm
最高操作溫度: +60 °C
最低操作溫度: -25 °C
