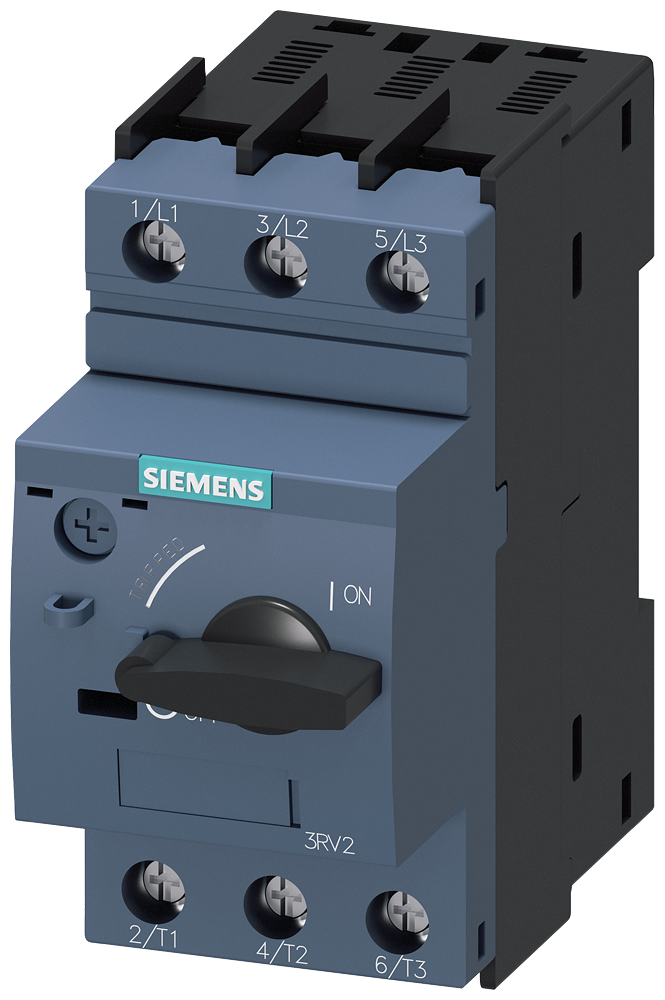

3RV2021-1DA10§Circuit breaker size S0 for motor protection, CLASS 10 A-release 2.2...3.2 A N release 42 A screw terminal Standard switching capacity

極數: 3
現在評比: 3.2 A @ 400 V ac
\T電壓額定值: 690 V ac
安裝類型: DIN Rail Mount
Breaking capacity: 100 kA @ 240 V ac;100 kA @ 400 V ac;100 kA @ 500 V ac;10 kA @ 690 V ac
Terminal contact type: Screw
Protection features: Phase Failure Detection;Short-Circuit
Tripping mechanism: Thermal-Magnetic
Reset actuator type: Rotary Switch
Tripping characteristics: Class 10
工作溫度範圍: -20 to +60 °C (Ambient)

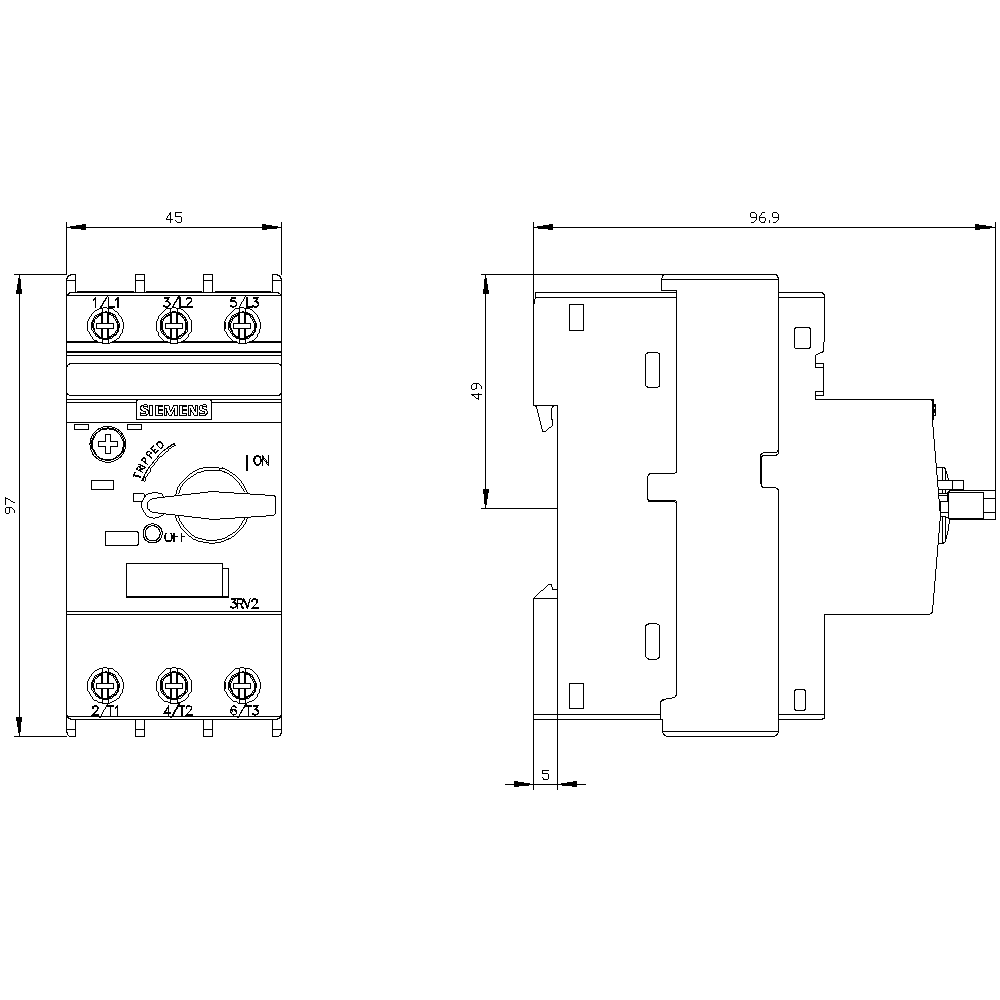

尺寸: 97 x 45 x 96 mm
